KPRO SLURRY PUMP

Medium duty slurry pump designed for easy maintenance and with the Wilfley Waterless Seal Technology.

The Kpro Slurry pump is Wilfley’s latest iteration of the classic side suction design that started it all. Easy maintenance and design for up to class 3 slurry services. No seal water required even with high slurry concentrations.

Main Benefits

  • Same footprint than the K pump with an upgrade design
  • Waterless Sealing Technology
  • Leakless seal operation
  • High durability
  • A maintenance engineer’s delight
  • Case can be easily removed without disturbing suction or discharge piping
  • Designed for up to class 3 slurry services
  • Froth handling

Main Applications

  • Mining and mineral processing
  • Aggregates (sand and gravel)
  • Lime Slurry
  • Food Industry
  • Wastewater

Key Characteristics

Capacities:
Up to 5,685 gpm (1,291 m3/hr)

Heads:
Up to 235 ft (72 m)

Max Working Pressure:

Particle Size:
Up to 1 in (25.4 mm)

Discharge Sizes:
From 1″ (25.4 mm) to 8″ (203 mm)

\

The Wilfley Dynamic Expeller Seal

Provide superior sealing during operation without the need for cumbersome and expensive flush systems

\

The SolidLock static seal

has been engineered for reliable leak free sealing during start up and shut down

\

Various Sealing Options

are available for your specific needs

\

The unique side suction design

allows for exceptionally easy serviceability without ever needing to disturb suction or discharge pipping

\

The side suction design

optimized the dynamic capability of the expeller

\

Exceptional froth handling capability

due to the side suction design

\

Wilfley's proprietary MAXALLOY 5A

provides extraordinary wear performance

Waterless Sealing: Wilfley’s Technological Advantage

The proven engineering based on Wilfley’s dynamic waterless sealing is trusted by many companies all over the world.

Materials Options

  • Maxalloy 5A
  • Maxalloy 5
  • Maxalloy 2
  • White Iron
  • WCD4
  • Alloy 20

Seal Options

  • Wilfley Waterless and Leakless Seal Technology
  • Expeller with Packing

Capacities

Flows up to 5,685 usgpm (1,291 m3/h)
Heads up to 235 ft (72 m)
Particle size up to 1 in (25 mm)

\

1K

2x1

\

1.5K

2.5x1.5

\

2K

4x2

\

2.5K

4x2.5

\

3K

5x3

\

4K

6x4

\

5K

8x5

\

6K

10x6

\

8K

12x8

Precision Engineering, Proven Reliability

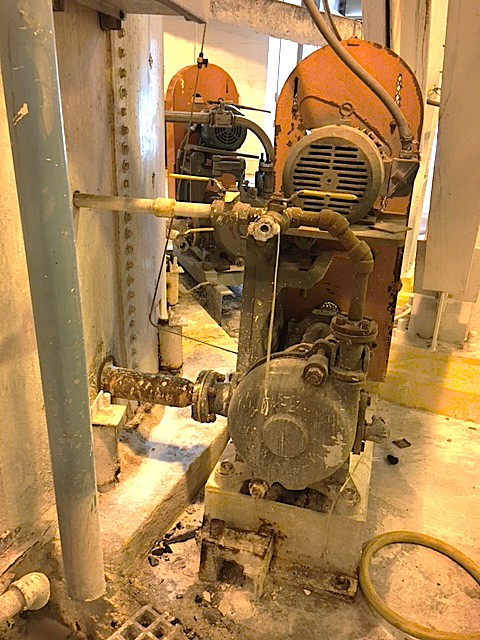

The Kpro pumps on the right handles 71% of calcium carbonate by weight. The pumps deliver an outanding performance under severe conditions that involve wear resistance and froth handling capabilities

Contact Wilfley for detailed specs, case studies, pricing and customized solutions along with answers to all your questions. We are here to help and want you to have the best options for your unique situation and operating budget.
